Hydraulic Cylinders

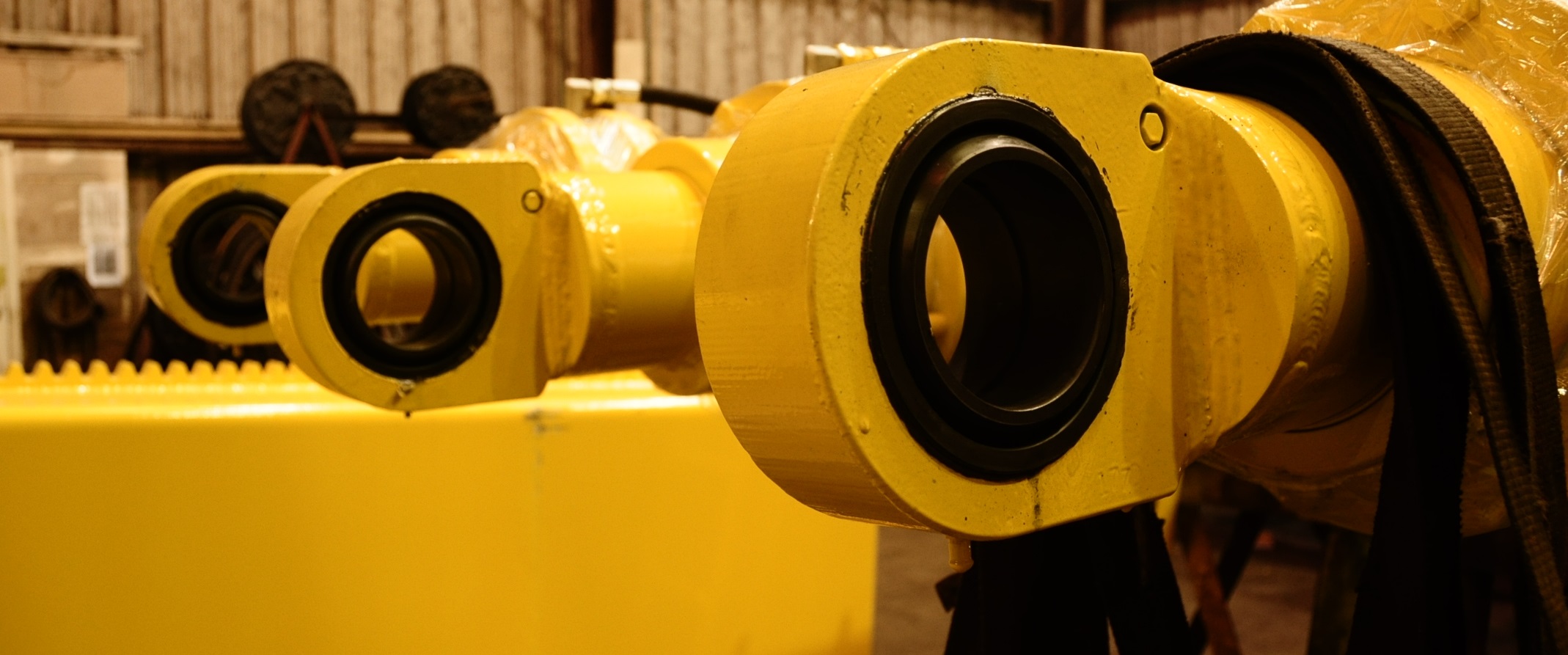

EBI has been manufacturing hydraulic cylinders since 1964.  At present EBI has six different sizes of cylinders which are used on the different sizes of cranes and other related products.

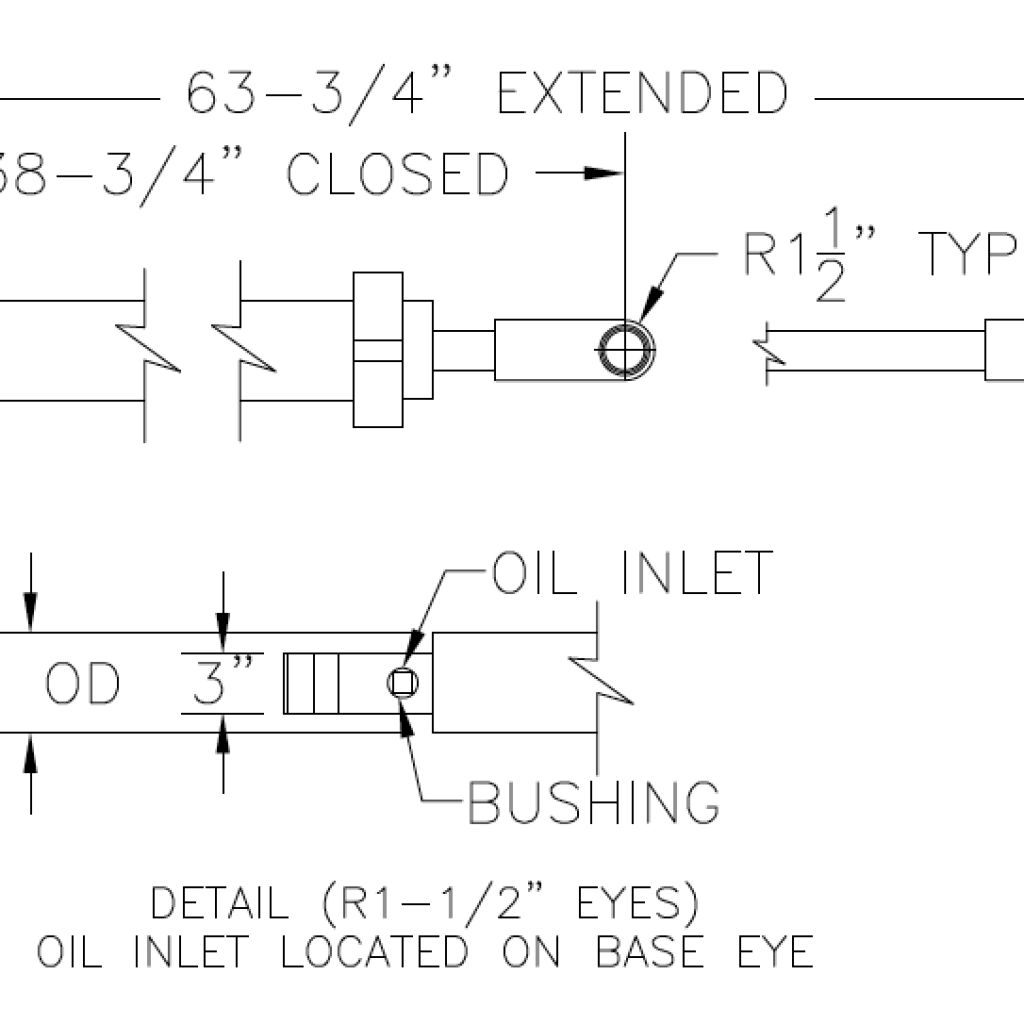

EBI’s 4 x 25 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 37,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have plain journal bearings with a bore diameter of 2.001” and a width of 3”.

EBI’s 5 x 33 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 58,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have plain journal bearings with a bore diameter of 2.512” and a width of 3”.

EBI’s 5 x 40 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 58,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have plain journal bearings with a bore diameter of 2.512” and a width of 3”.

EBI’s 7 x 40 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 115,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have plain journal bearings with a bore diameter of 2.512” and a width of 3”.

EBI’s 7 x 80 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 115,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have plain journal bearings with a bore diameter of 2.512” and a width of 3”.

EBI’s 10 x 113 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 235,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have spherical plain bearings with a bore diameter of 4.000” and a width of 3.5”.

EBI’s 10 x 120 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 235,000 lbs. at a maximum working pressure of 3,000 psi.  The cylinder eyes have spherical plain bearings with a bore diameter of 4.000” and a width of 3.5”.

EBI’s 16 x 113 hydraulic cylinder is designed in accordance with and approved by API & ABS.  The maximum axial force is 703,000 lbs. at a maximum working pressure of 3,500 psi.  The cylinder eyes have spherical plain bearings with a bore diameter of 6.000” and a width of 5”.
