Planetary Gearboxes

EBI Mechanical Systems LLC

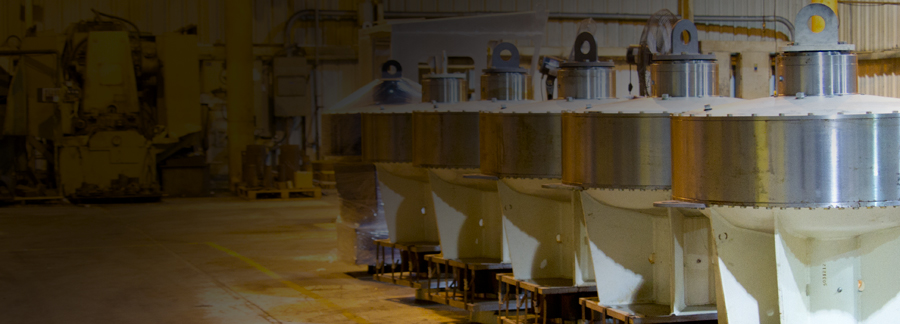

EBI’s liftboat jacking systems are comprised of four different planetary gearbox models; the GB73, GB82, GB380 and the GB450. The GB73 is installed on many EBI liftboats used in the GOM. The GB82 is used on larger EBI liftboats as well as 320′ ABS Class liftboat designs.

All EBI Gear Reductions are designed and manufactured to meet all requirements set forth by API Spec 2C, ABS, USCG and OSHA.

GB40

Highlights:

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by Engineering
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    • 26-5/16” L x 14” W x 13-1/8”H (without hydraulic motor)

Specifications:

  • Ratio: 39.96.1
  • Output Torque (continuous): 50,000 in. lbs.
  • Output Torque (intermittent): 100,000 in. lbs.

Pinion:

  • Do (outside diameter): 9-5/8”
  • D (Pitch): 8.0000”
  • 12 Tooth: 1-1/2 DP
  • F (face width): 3-3/16”
  • Available in SAE 1045 or ASTM A514 Q material

Available Options:

  • Option A
    • Part No.: 3343-3000011
    • Description: 9 3/16” Gearbox Housing
ADDITIONAL DETAILS

GB73

Highlights:

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by Engineering
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    • 31” L x 20-1/2” W x 20-1/2” H (without hydraulic motor)
  • Models also available: TGB73, SGB73, TGB40, SGB40, and BG82

Specifications:

  • Ratio: 73.469.1
  • Output Torque (continuous): 160,000 in. lbs.
  • Output Torque (intermittent): 200,000 in. lbs.

Pinion:

  • Do (outside diameter): 9-5/8”
  • D (Pitch): 8.0000”
  • 12 Tooth: 1-1/2 DP
  • F (face width): 3-1/4”
  • Available in SAE 1045 or ASTM A514 Q material

Available Options:

  • Option A
    • Part No.: 3343-3000011
    • Description: 12-5/8” Main Gearbox Housing
  • Option B
    • Part No.: 3343-3000012
    • Description: Outboard Bearing Housing
ADDITIONAL DETAILS

GB82

EBI’s proven planetary gearbox, the GB82, has been used in service for many years within the EBI fleet. Long lasting, dependable, and easy to maintain, the GB82 is the perfect solution for small to mid-sized liftboat designs.

Highlights:

  • Planetary Reduction system
  • 82:1 ABS approved to 178,500 lb jacking force.
  • 100% designed and fabricated by EBI.
  • Over 600 units in service.
  • Outfitted on multiple liftboats including seven 320′ ABS Class vessels.
  • Used in the Panama Canal.
ADDITIONAL DETAILS

GB380

The GB380 provides a mid range planetary gearbox option. It is similar in design and concept to the GB450, providing an economical option for lighter load applications.

Highlights:

  • Electric over Hydraulic System
  • Zollern planetary gear set
  • Bosch Rexroth/Hagglünds CA50 motor and braking
  • 380,000 lbs of load / pinion tooth
  • Severe Storm Capacity (SSC) – 750,000
ADDITIONAL DETAILS

GB450

EBI’s new world class liftboat jacking system, the GB450, sets standards like no other. This gearbox is designed to handle severe storm conditions, heavier loads, and load faster on location.

Highlights:

  • Electric over Hydraulic System
  • Zollern planetary gear set
  • Bosch Rexroth/Hagglünds CA50 motor and braking
  • 450,000 lbs of load / pinion tooth
  • Severe Storm Capacity (SSC) – 900,000
ADDITIONAL DETAILS
