Marine Crane Gearboxes

EBI Cranes LLC

Swing Gearboxes

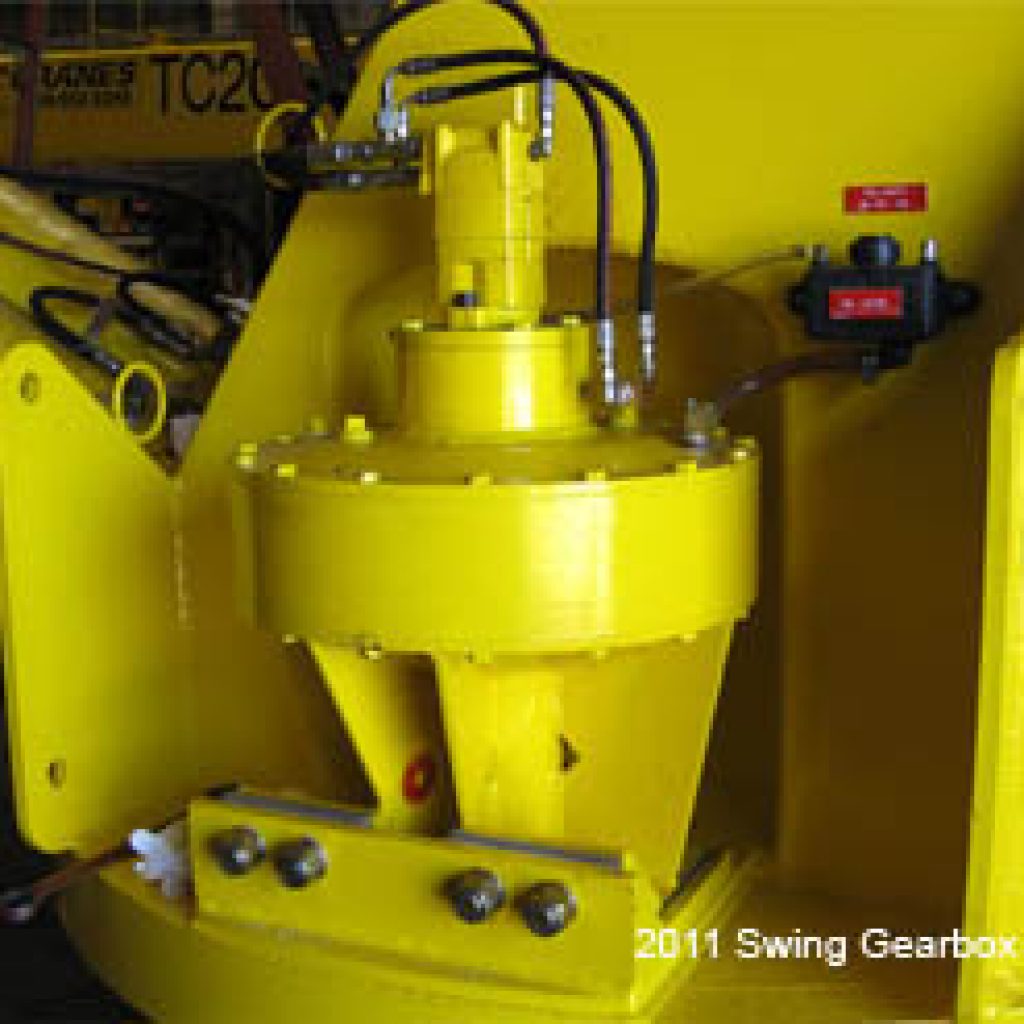

EBI’s swing gearbox model the SGB40, is a gearbox used in all EBI’s offshore pedestal-mounted cranes. The SGB40’s purpose is to handle the swing of the crane from left to right. The SGB40 also utilizes EBI’s 12-tooth pinion design and has proven to be a reliable gearbox in all EBI offshore pedestal-mounted cranes.

All EBI Gear Reductions are designed and manufactured to meet all requirements set forth by API Spec 2C, ABS, USCG and OSHA.

swing-gearbox

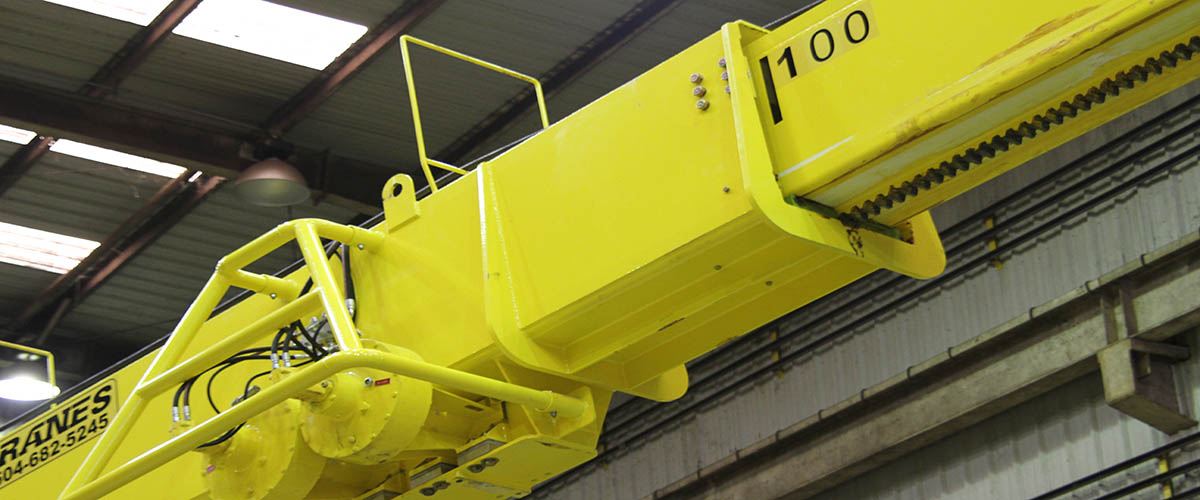

Telescopic Gearboxes

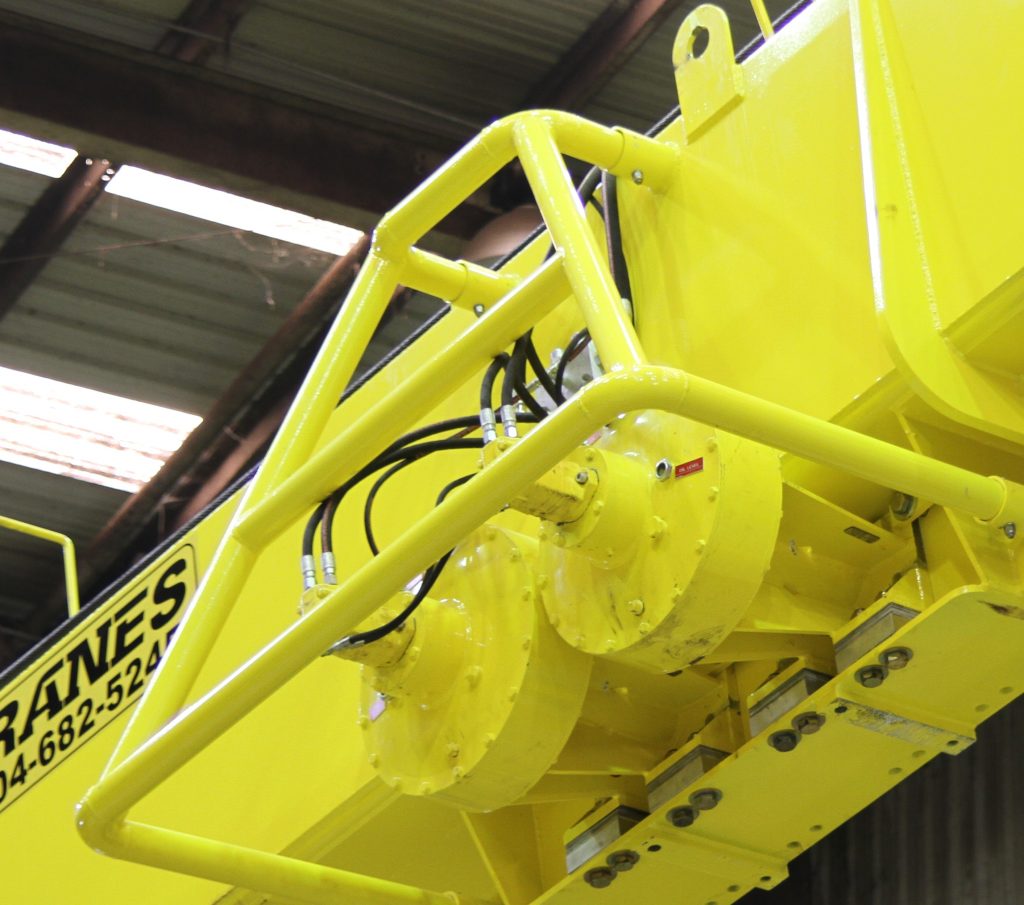

EBI designs and manufactures the (TGB), a telescopic gearbox, for use on their telescopic boom marine cranes to extend and retract the inner boom externally. The gearboxes outside of the boom make it easier to service and maintain. They also utilize EBI’s 12-tooth pinion legendary design for better contact ratios, more secure handling, and more speed diversity.

All EBI Gear Reductions are designed and manufactured to meet all requirements set forth by API Spec 2C, ABS, USCG and OSHA.

telescopic-box

Highlights

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by Engineering
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    19 15/16″L x 13 1/2″W x 10 13/16″H (without hydraulic motor)
  • Models also available: GB73, SGB73, TGB73, TGB40 and GB82

Specifications:

  • Ratio: 39.96:1
  • Output Torque (continuous): 50,000 in. lbs.
  • Output Torque (intermittent): 100,000 in. lbs.

Pinion:

  • Do (outside diameter): 5-7/16”
  • D (Pitch): 4.8000”
  • 12 Tooth: 2-1/2 DP
  • F (face width): 3-1/4”
  • Available in SAE 1045 or ASTM A514 Q material.

Available Options:

  • Option A
    • Part No.: 3343-3000001
    • Description: 9-3/16” Gearbox Housing
  • Option B
    • Part No.: 3343-0450010
    • Description: Outboard Bearing Housing

Highlights

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by Engineering
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    26 7/8”L x 20 1/2”W x 20 1/2”H (without hydraulic motor)

Specifications:

  • Ratio: 73.469:1
  • Output Torque (continuous): 160,000 in. lbs.
  • Output Torque (intermittent): 200,000 in. lbs.

Pinion:

  • Do (outside diameter): 9-5/8”
  • D (Pitch): 8.0000”
  • 12 Tooth: 1-1/2 DP
  • F (face width): 3-3/16”
  • Available in SAE 1045 or ASTM A514 Q material

Available Options:

  • Option A
    • Part No.: 3343-3000011
    • Description: 9 3/16” Gearbox Housing

Highlights

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by engineering.
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    26 5/16″L x 14″W x 13 1/8″H (w/o hydraulic motor)
  • Models also available: GB73, SGB73, TGB73, SGB40 and GB82

Specifications:

  • Ratio: 39.96:1
  • Output Torque (continuous): 50,000 in. lbs.
  • Output Torque (intermittent): 100,000 in. lbs.

Pinion:

  • Do (outside diameter): 9-5/8”
  • D (Pitch): 8.0000”
  • 12 Tooth: 1-1/2 DP
  • F (face width): 3-3/16”
  • Available in SAE 1045 or ASTM A514 Q material.

Available Options:

  • Option A
    • Part No.: 3343-3000015
    • Description: 9-3/16” Gearbox Housing

Highlights

  • Factory assembled and tested
  • Marine coating system
  • Hydraulic motor size determined by Engineering
  • 1 Year Warranty
  • General dimensions with outboard bearing:
    31″L x 20 1/2″W x 20 1/2″H (without hydraulic motor)
  • * Models also available: TGB7 and SGB73

Specifications:

  • Ratio: 73.469:1
  • Output Torque (continuous): 160,000 in. lbs.
  • Output Torque (intermittent): 200,000 in. lbs.

Pinion:

  • Do (outside diameter): 9-5/8”
  • D (Pitch): 8.0000”
  • 12 Tooth: 1-1/2 DP
  • F (face width): 3-1/4”
  • Available in SAE 1045 or ASTM A514 Q material.

Available Options:

  • Option A
    • Part No.: 3343-3000011
    • Description: 12-5/8” Gearbox Housing
  • Option B
    • Part No.: 3343-3000012
    • Description: Outboard Bearing Housing
